PowerCell 200Ah Slimline Lithium Battery

Stop sacrificing storage space for power. The PowerCell 200Ah Slimline is designed specifically for modern 4WD and canopy builds where every millimetre counts. Unlike standard lithium blocks, this 120mm-wide "Slimline" model allows vertical or horizontal mounting in tight cavities. Integrated with an intelligent Battery Management System (BMS) and Bluetooth connectivity, you can monitor your state of charge, voltage, and cell health in real-time via the SmartCell app.

Key Features:

• Space-Saving Profile: At only 120mm wide, this Slimline unit fits perfectly in narrow gaps behind seats or along canopy walls.
• Integrated SmartCell App: Connect via Bluetooth to monitor battery status, temperature, and performance directly from your smartphone.
• Advanced BMS Protection: The built-in system automatically guards against overcharge, overdischarge, short circuits, and extreme temperatures.
• High Discharge Capability: Supports a maximum continuous discharge of 150A, enabling you to run high-draw appliances such as inverters and coffee machines.
• Expandable Configuration: Designed to support up to 4 units in parallel (4P) or 4 in series (4S), allowing for massive 800Ah or 48V power banks.

• 1x PowerCell 200Ah Slimline Lithium Battery

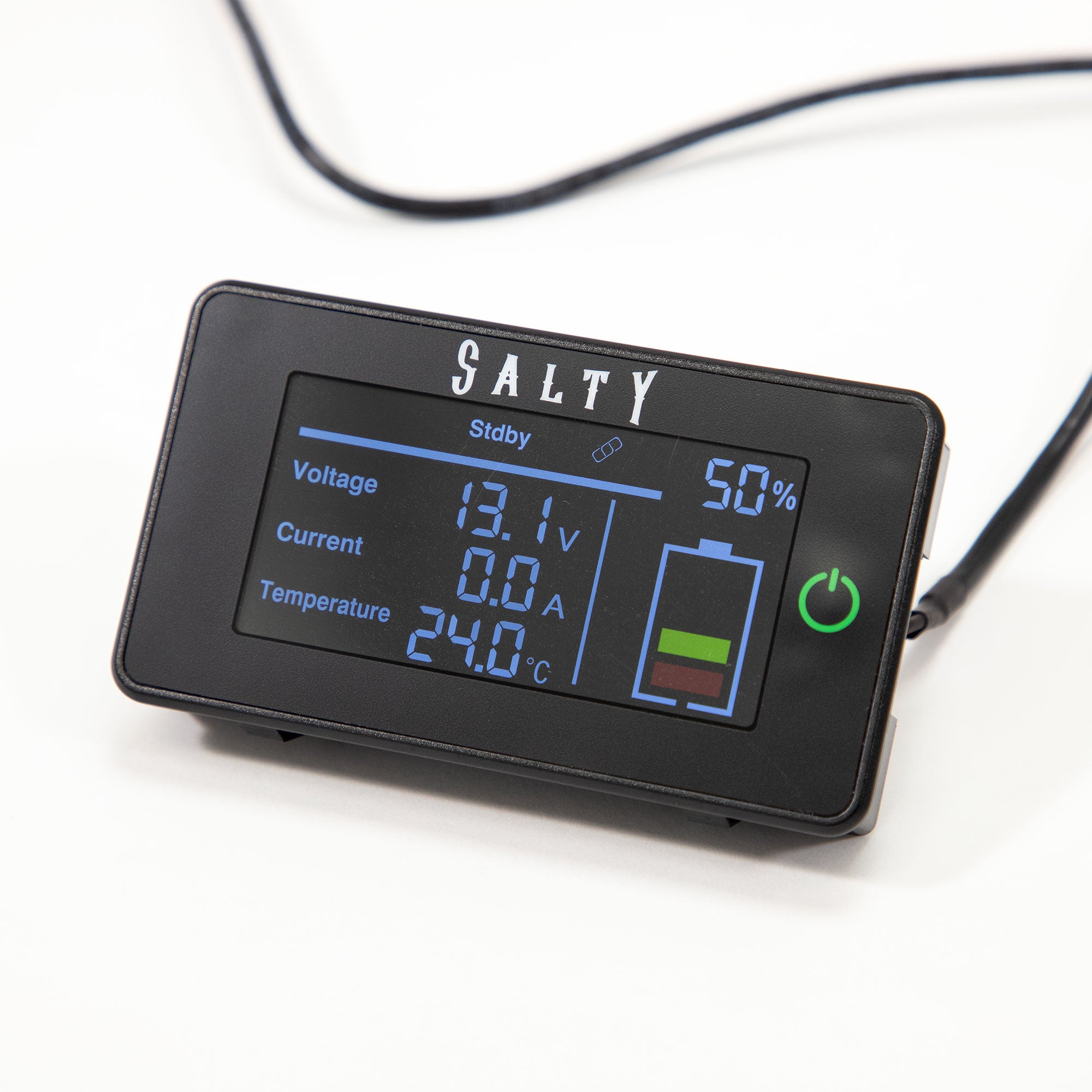

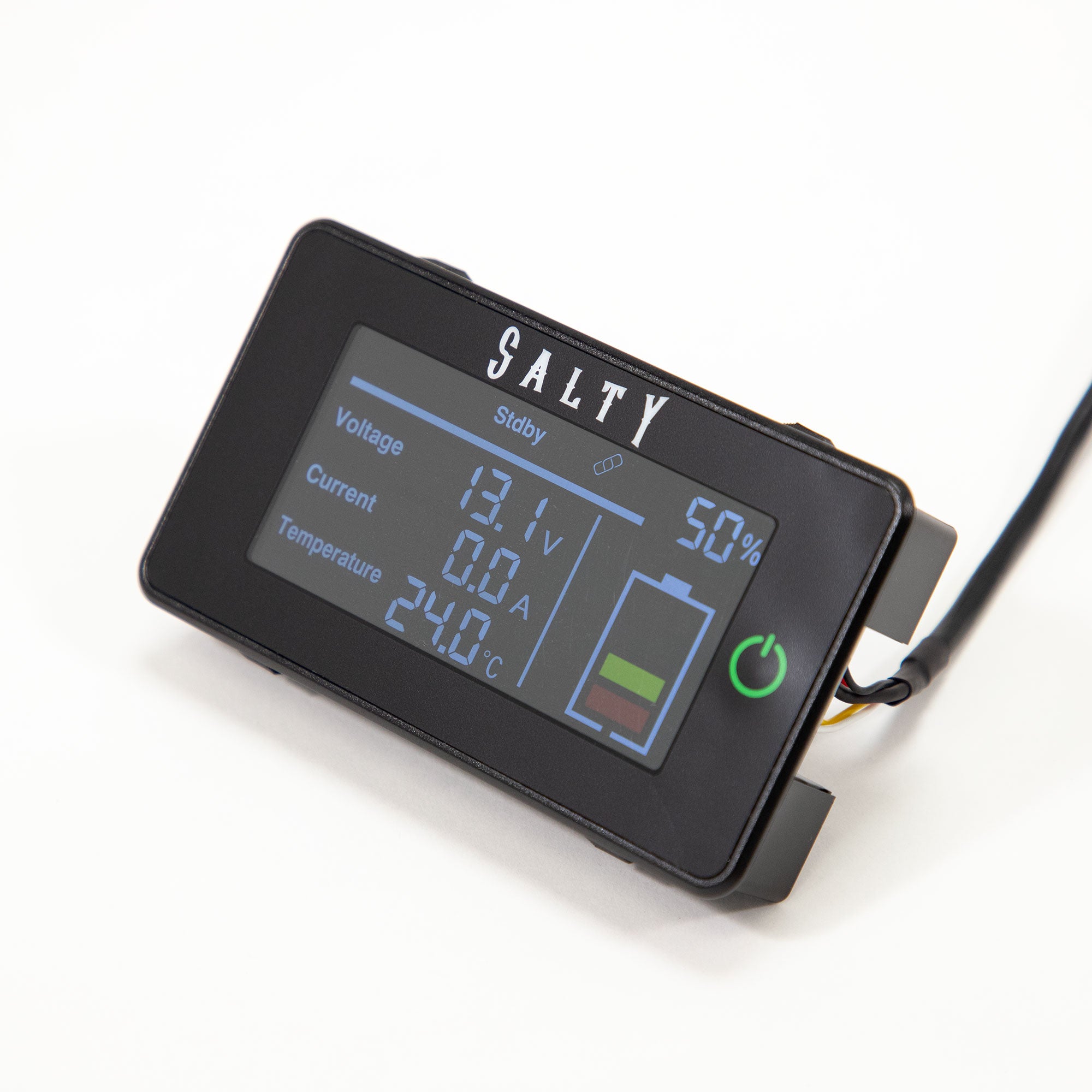

• 1x External Battery Display Monitor
• 8x M8*12 Combination Screws
• 1x Comprehensive User Manual

• Model: AP200LFP-MP
• Capacity: 200Ah / 2,560Wh
• Nominal Voltage: 12.8V
• Cell Type: Prismatic LiFePO4 Cells
• Cycle Life: 6,000+ Cycles
• Max. Continuous Discharge Current: 150A
• Max. Pulse Discharge Current: 325A
• Charge Cut-off Voltage: 14.4V
• Dimensions: 46cm (L) x 12cm (W) x 10cm (H)
• Weight: Approximately 21kg

How is the "Slimline" different from the "Super Slim"?
The Slimline model (this unit) features a width of 120mm, making it ideal for standard side-wall mounting. The "Super Slim" is even narrower at 61mm wide but is significantly longer (940mm) to achieve the same capacity.

Can I mount this battery on its side?
Yes. All PowerCell batteries can be installed in any orientation when mounted on a horizontal surface. For vertical wall installations, we recommend mounting with the terminals facing upward or to the side.

What is the "SmartCell" App?
It is a dedicated Bluetooth application for iOS and Android that allows you to view your battery’s live data, including charge level, voltage, current, and internal temperature, without needing to access the battery physically.

What is the warranty period?
This battery is backed by a 12 month limited warranty covering defects in materials and workmanship.
