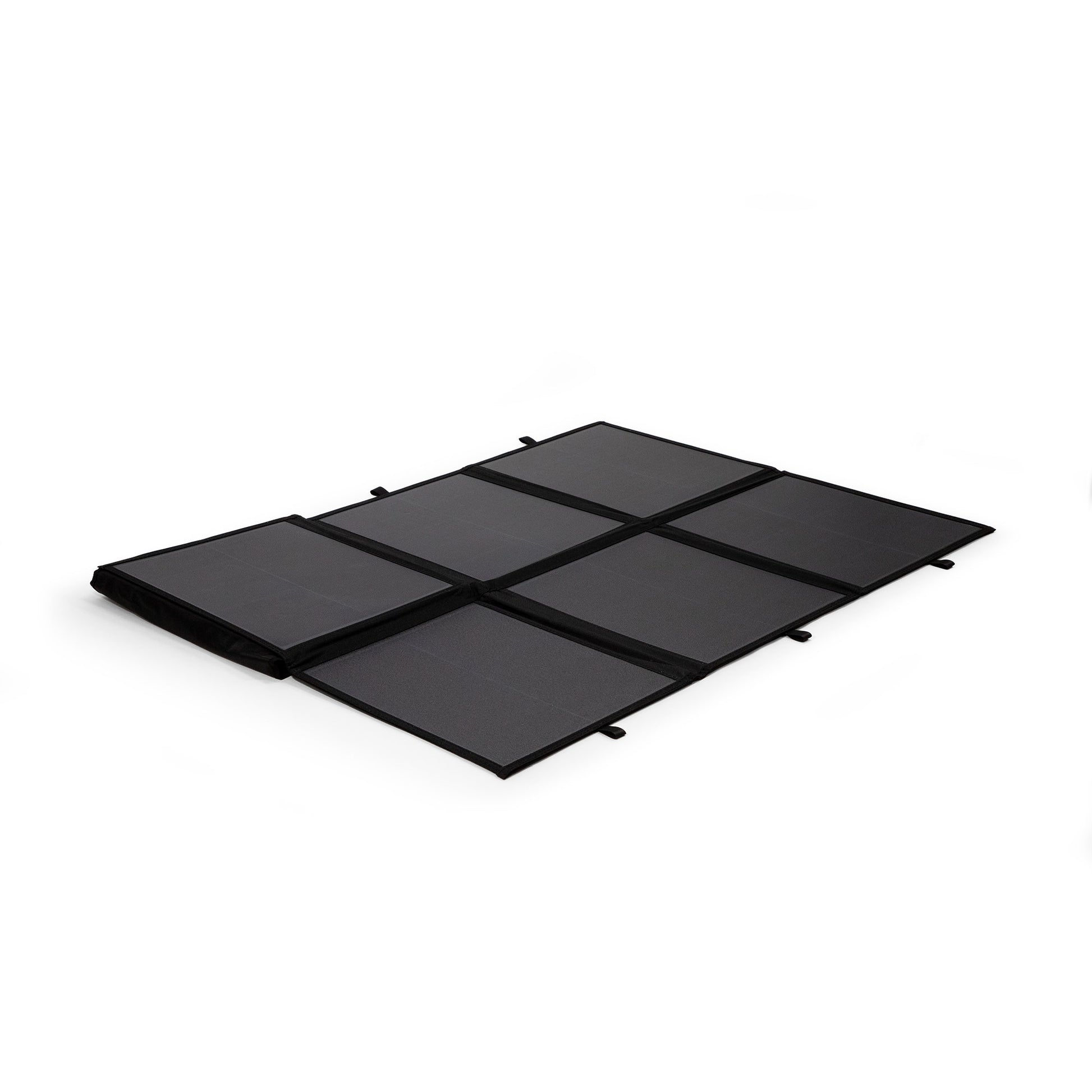

SunGrid 200W folding solar panel with anti-crack layer

Standard portable panels are often prone to micro-cracks from constant folding and transport, which can lead to permanent power loss. The SunGrid 200W solves this with an integrated anti-crack film and solid copper backing that reinforces the monocrystalline cells against vibration and physical impact. Coupled with a textured ETFE finish, this panel is not only tougher but also self-cleaning and more efficient at capturing sunlight from lower angles.

Key Features:

• Anti-Crack Protection: Specialised internal layering prevents cell damage from the rigours of off-road travel and frequent folding.
• High-Efficiency Monocrystalline Cells: Utilises A-grade cells with a 23.5% conversion rate to ensure maximum power output even in low-light conditions.
• Premium ETFE Lamination: Provides superior light transmittance (up to 95%) and excellent resistance to heat, corrosion, and UV degradation.
• Ultra-Lightweight & Compact: Weighing just 5.7kg, it is significantly lighter than traditional glass folding panels, making it easy to manoeuvre and stow away.
• Versatile Mounting: Features integrated tie-down points and handy tabs, allowing you to secure the panel in windy weather or hang it for optimal sun exposure.

• 1x SunGrid 200W Folding Solar Panel with Anti-Crack Layer

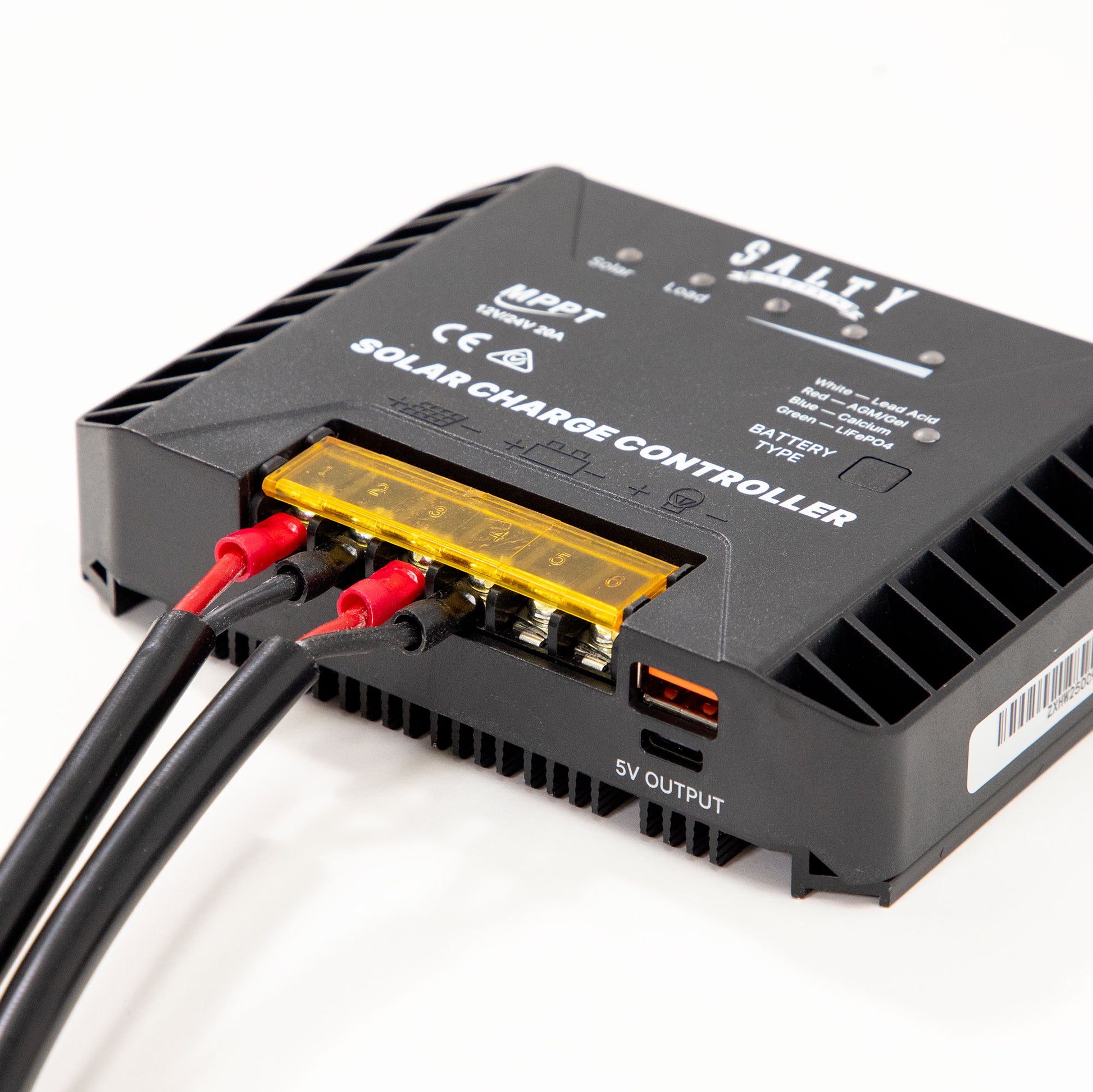

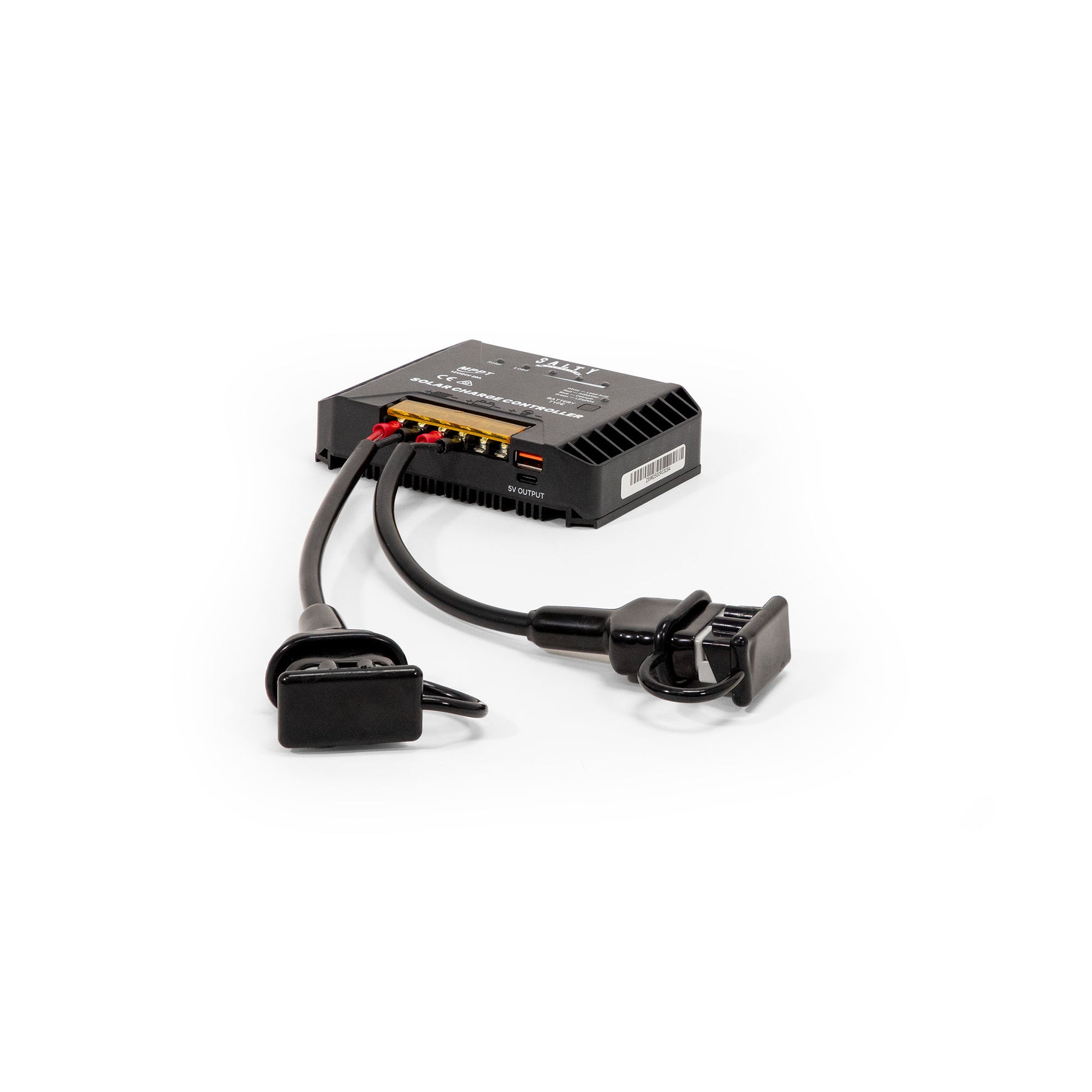

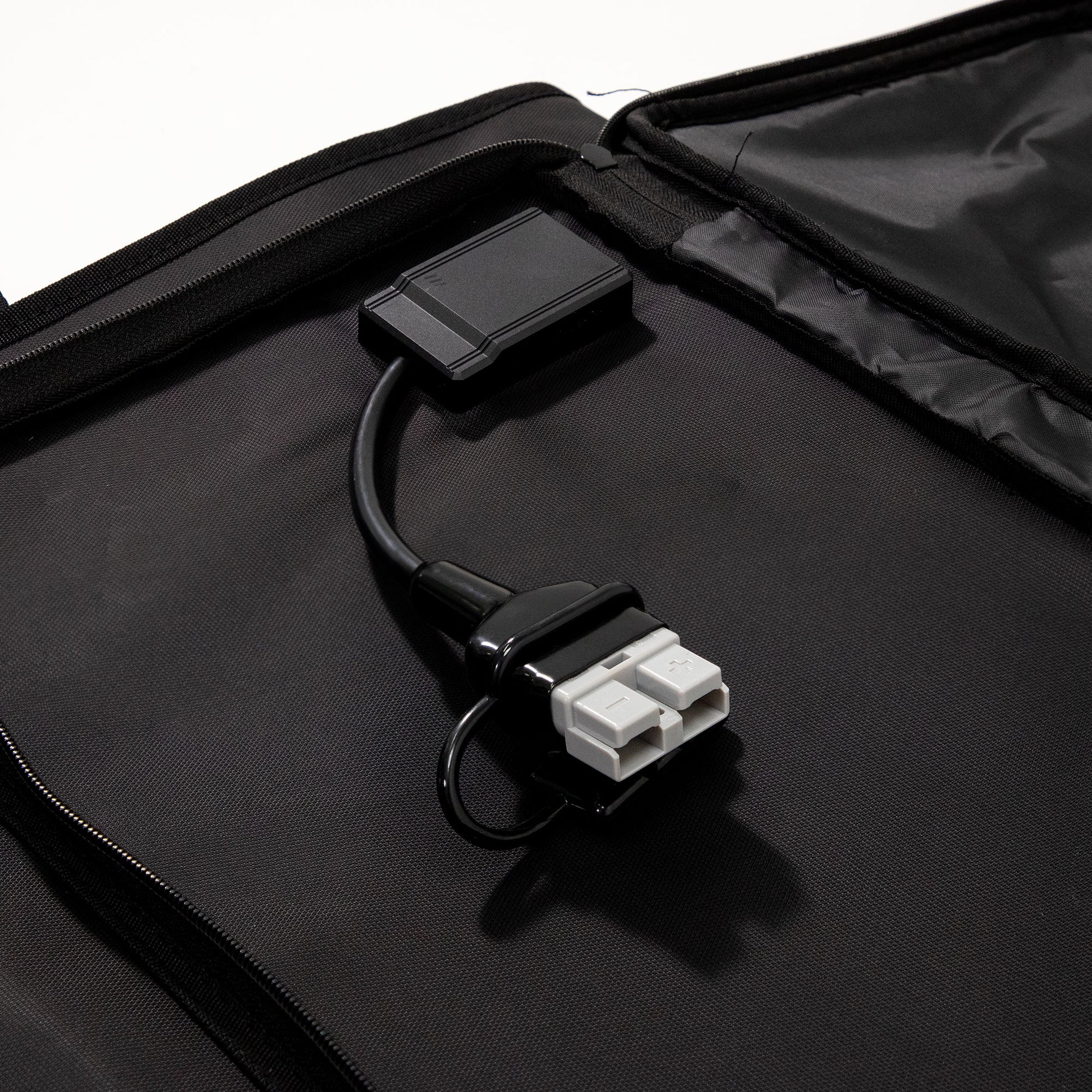

• 1x 20A MPPT Controller

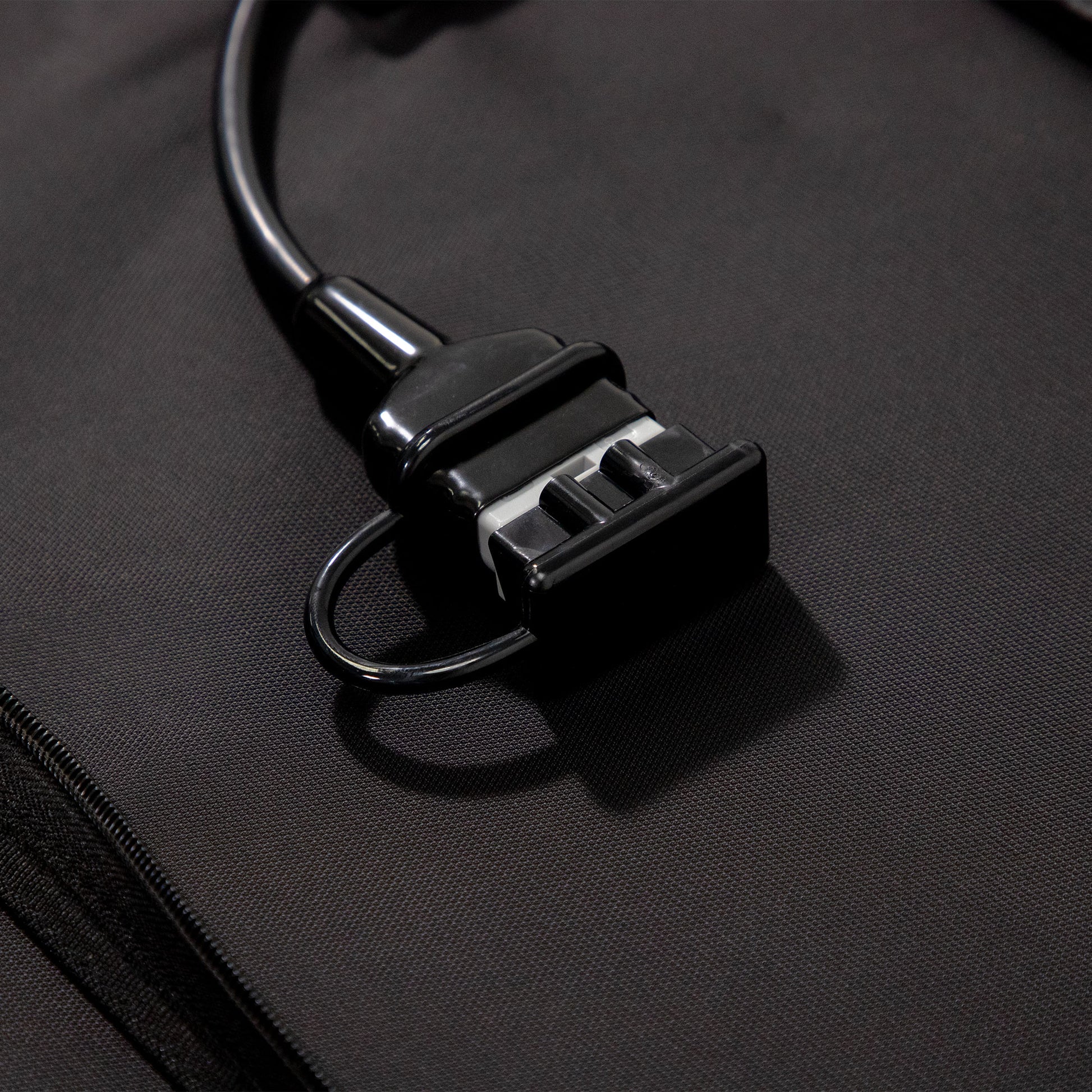

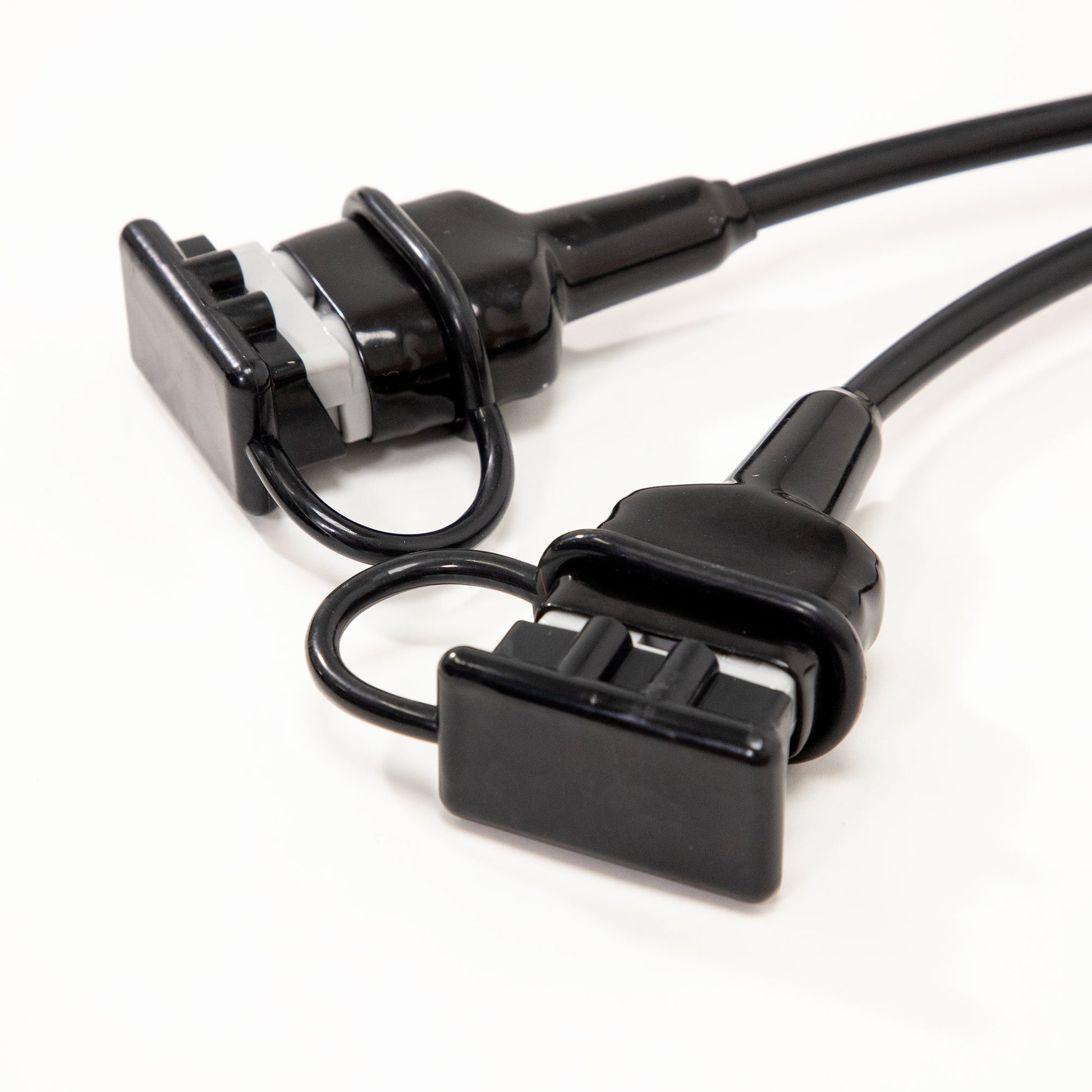

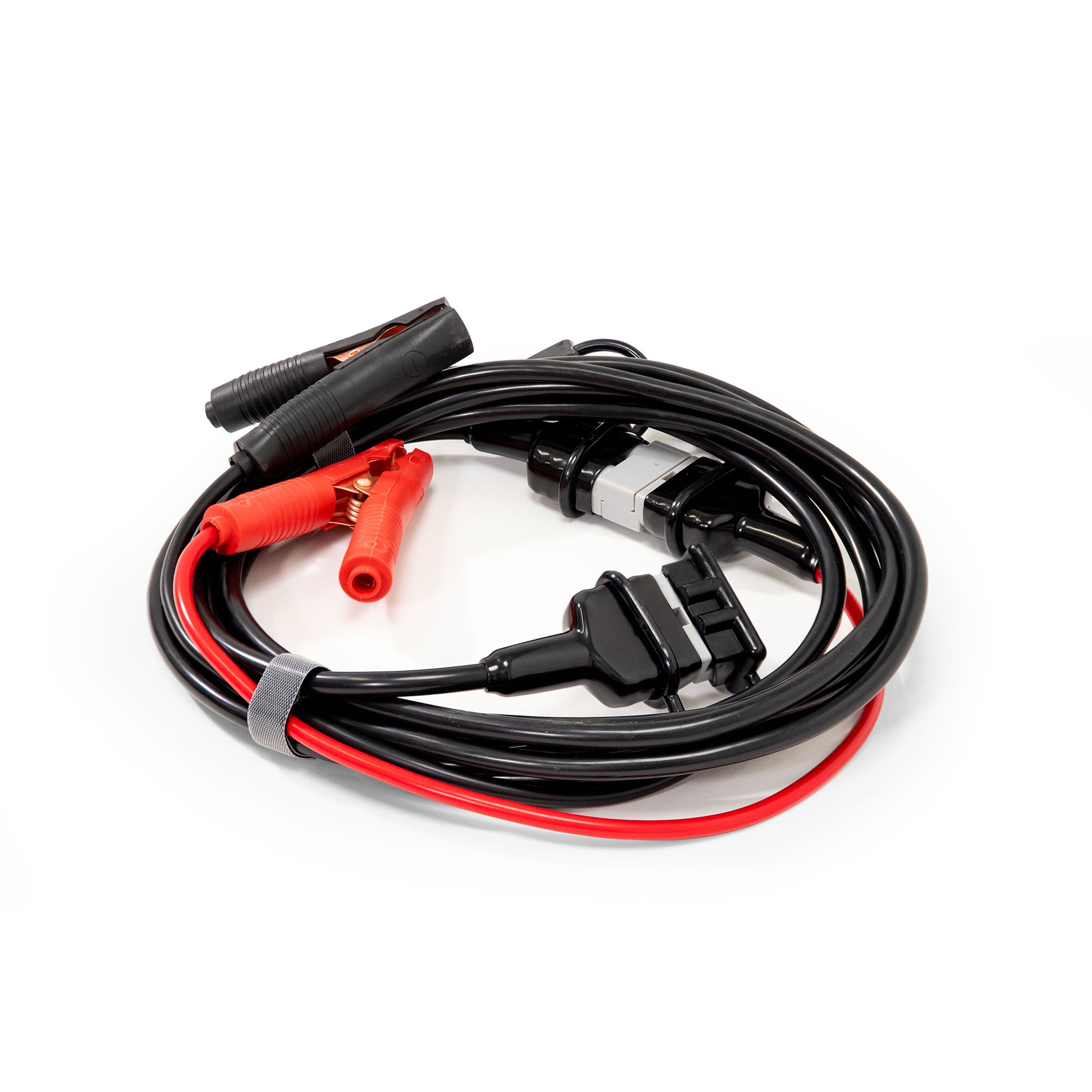

• 1x 5-Metre Extension Cable with Anderson-style plugs

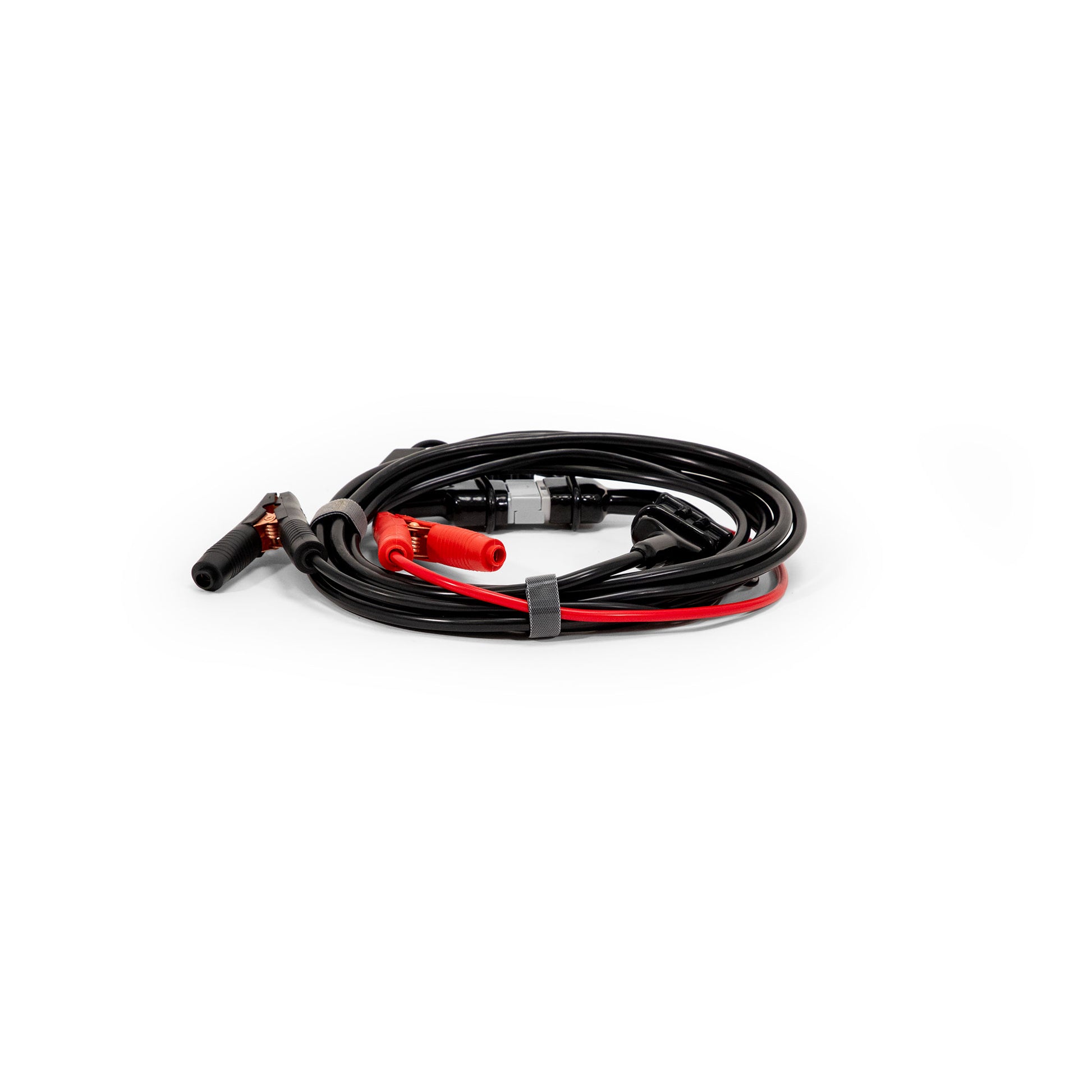

• 1x Alligator Clip to Anderson plug adaptor

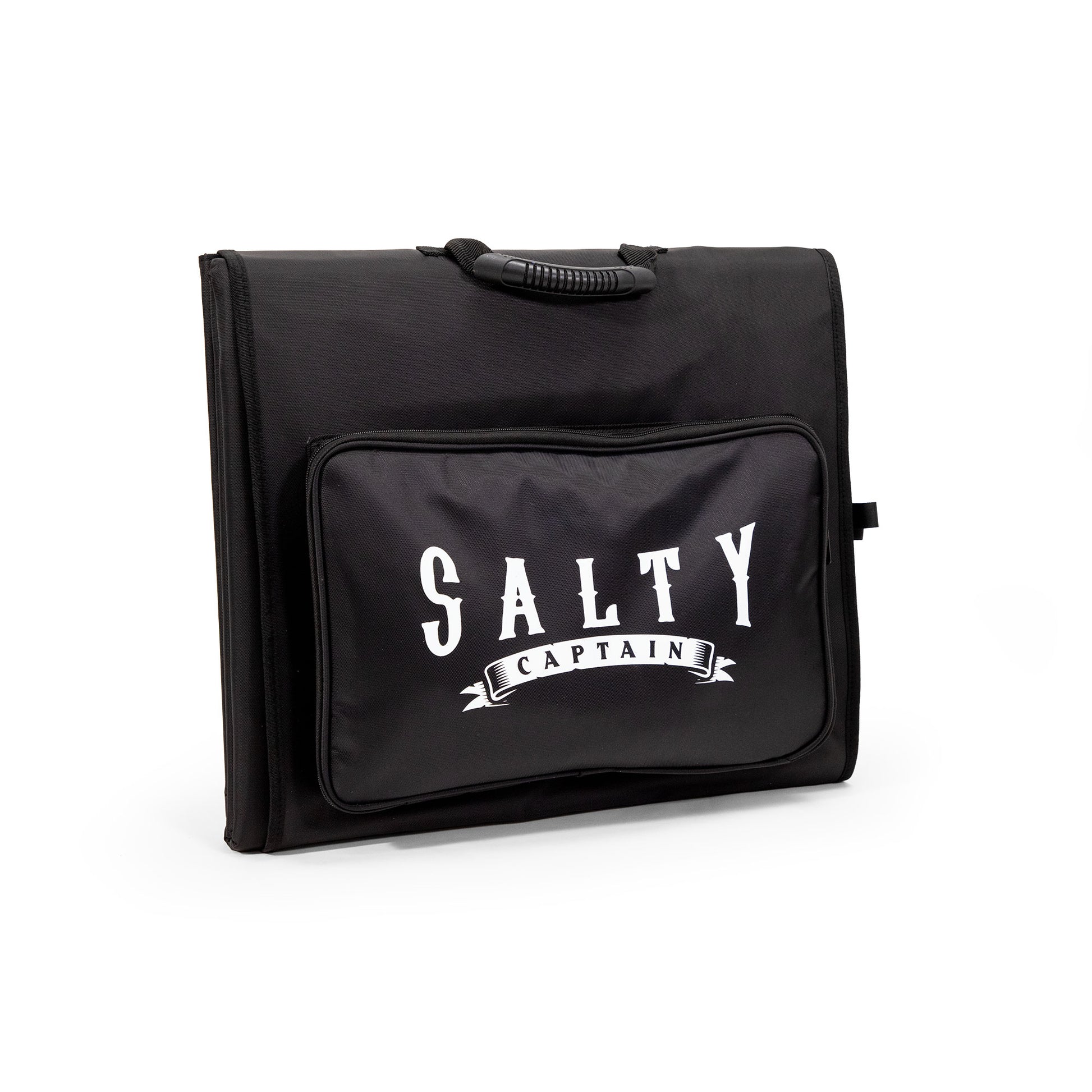

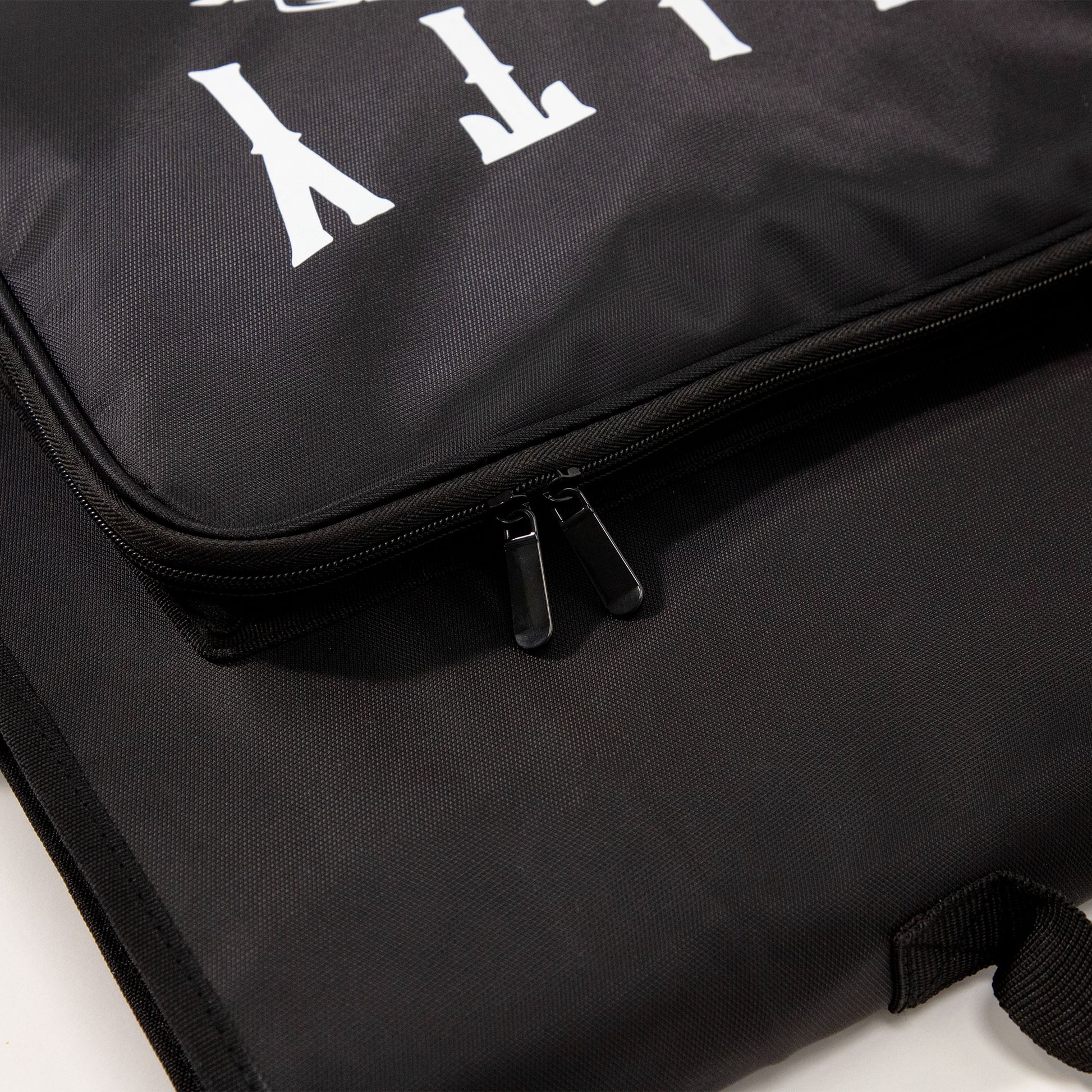

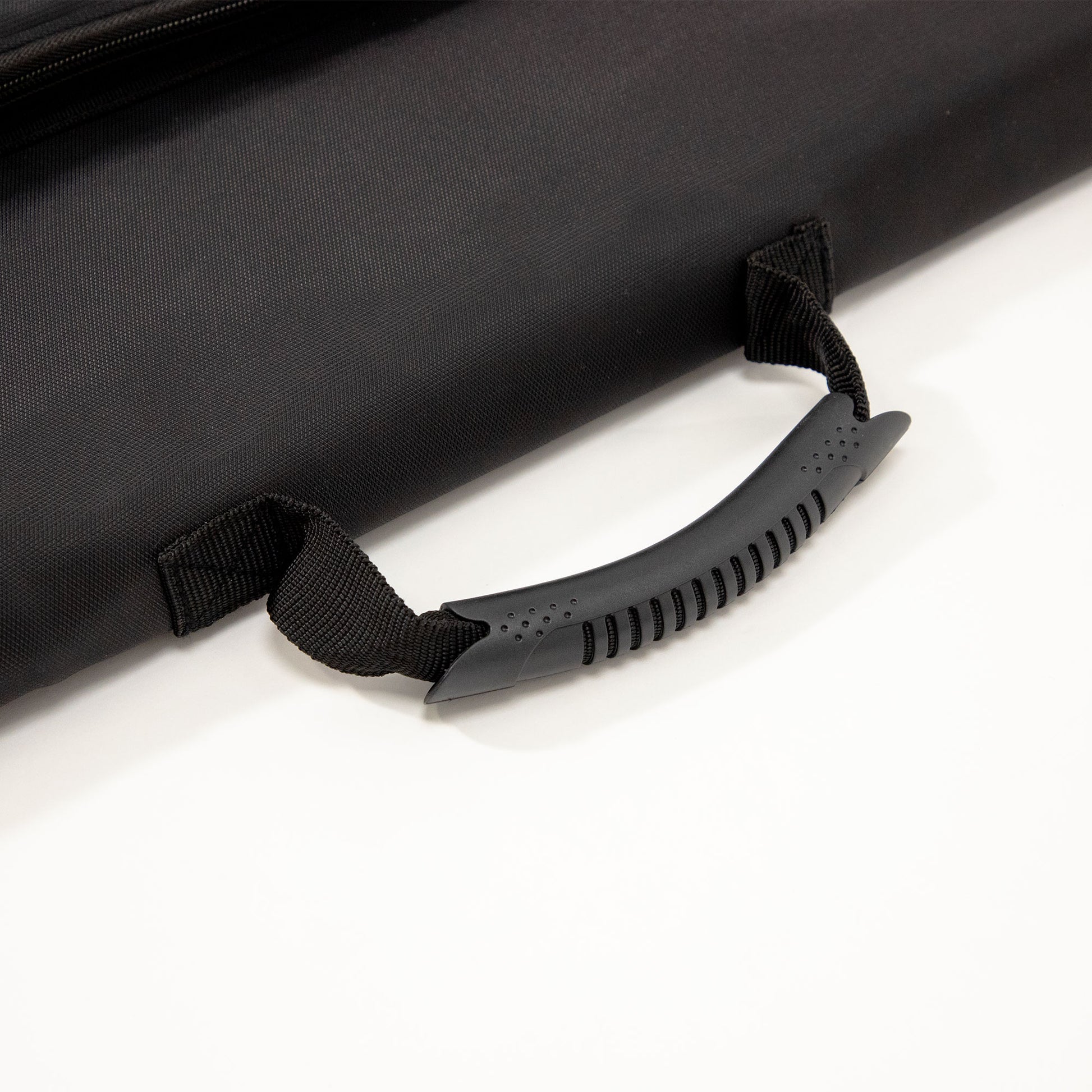

• 1x Heavy-Duty Padded Carry Bag

• Maximum Power (Pmax): 200W
• Cell Type: Monocrystalline with Anti-Crack Film
• Coating: Premium ETFE (Ethylene Tetrafluoroethylene)
• Max Power Voltage (Vmp): 18.0V - 19.8V
• Max Power Current (Imp): 10.1A - 11.1A
• Open Circuit Voltage (Voc): 21.24V - 24.8V
• Short Circuit Current (Isc): 10.8A - 12.2A
• Cell Efficiency: Up to 23.5%
• Dimensions (Open): 1090mm x 1585mm x 12mm
• Dimensions (Folded): 550mm x 405mm x 55mm
• Weight: 5.7kg (Panel only)

What is the benefit of the anti-crack layer?
Portable panels are often flexed during setup and pack-down, which can cause invisible "micro-cracks" in standard cells. Our anti-crack film provides a structural buffer that protects the silicon cells, ensuring a significantly longer lifespan and consistent power output over years of use.

Can I leave this panel out in the rain?
Yes, the panel features an IP65 or higher rating and is designed for outdoor use. However, for the best longevity, we recommend ensuring the controller remains in a dry location and the panel is dried before long-term storage.

Does it come with a solar regulator?
Most of our kits include a high-efficiency charge controller, allowing you to connect directly to 12V AGM, Gel, or Lithium batteries without extra hardware.

How do I clean the ETFE surface?
The ETFE coating is naturally non-stick and self-cleaning. Usually, a quick wipe with a damp cloth is all that's needed to remove dust or bird droppings to maintain peak efficiency.

This item is currently on clearance and priced to sell. Shipping is calculated at checkout and processed at the full market rate, delivered to your door via our preferred carrier. Clearance items do not have discounted shipping.

Location & Pickup:
Orders are dispatched from our warehouse at 2/14 Thomas Hanlon Court, Yatala, QLD 4207. Local pickup is available. Select “Pickup” at checkout.

Dispatch Time:
Orders are typically dispatched within 1–3 business days. You’ll receive tracking details and delivery contact information from the carrier.

Delivery Times (Australia)

• Metro Areas: Standard 2–5 business days
• Western Australia & Northern Territory: 6-12 business days

International Shipping: This item cannot be shipped internationally.
